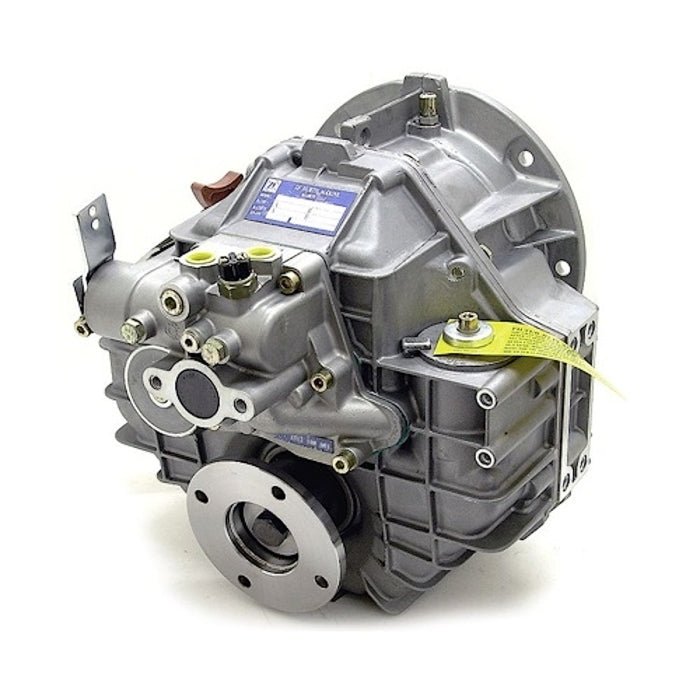

Down Angle Transmission 2.70:1 Ratio | ZF Marine 68A-2.70

Down Angle Transmission 2.70:1 Ratio | ZF Marine 68A-2.70

Down Angle Transmission 2.70:1 Ratio | ZF Marine 68A-2.70

Full reversing design for left hand or right hand propeller shaft rotation in forward Gear ratio A with lever toward flywheel 2.68:1 - Gear ratio B with lever away from flywheel 2.70:1 4 bolt 5-1/4 inch diameter output flange with 4-1/4 inch center-to-center bolt circle Standard left hand flywheel input rotation engines only Mechanical cable shifting - contact us for electric shift Unpainted aluminum transmission case Replaces Hurth model HSW 630A and ZF 63A Weight 97 pounds and ships LTL truck only - Not included in free freight program Cooler and Flywheel Damper Drive Plate replacement recommended when buying a new transmission Replaces ZF Marine 68A-R:2.7 and ZF63A-2.7 Replaces Crusader RA157022D Replaces Mercury 863744T5, 862220A1, 863744R05, 8M0163801, 8M0188311

• Full reversing design for left hand or right hand propeller shaft rotation in forward
• Gear ratio A with lever toward flywheel 2.68:1 - Gear ratio B with lever away from flywheel 2.70:1
• 4 bolt 5-1/4 inch diameter output flange with 4-1/4 inch center-to-center bolt circle
• Standard left hand flywheel input rotation engines only
• Mechanical cable shifting - contact us for electric shift
• Unpainted aluminum transmission case
• Replaces Hurth model HSW 630A and ZF 63A
• Weight 97 pounds and ships LTL truck only - Not included in free freight program
• Cooler and Flywheel Damper Drive Plate replacement recommended when buying a new transmission
• Replaces ZF Marine 68A-R:2.7 and ZF63A-2.7
• Replaces Crusader RA157022D
• Replaces Mercury 863744T5, 862220A1, 863744R05, 8M0163801, 8M0188311
