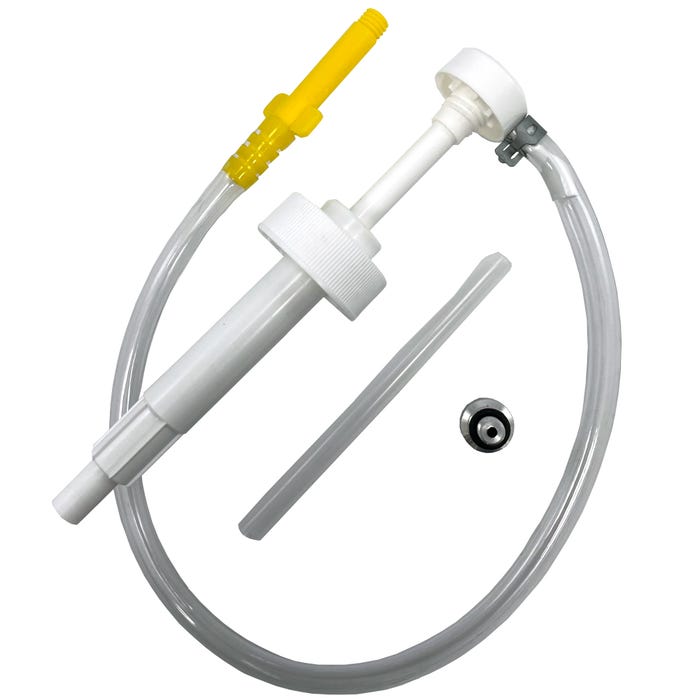

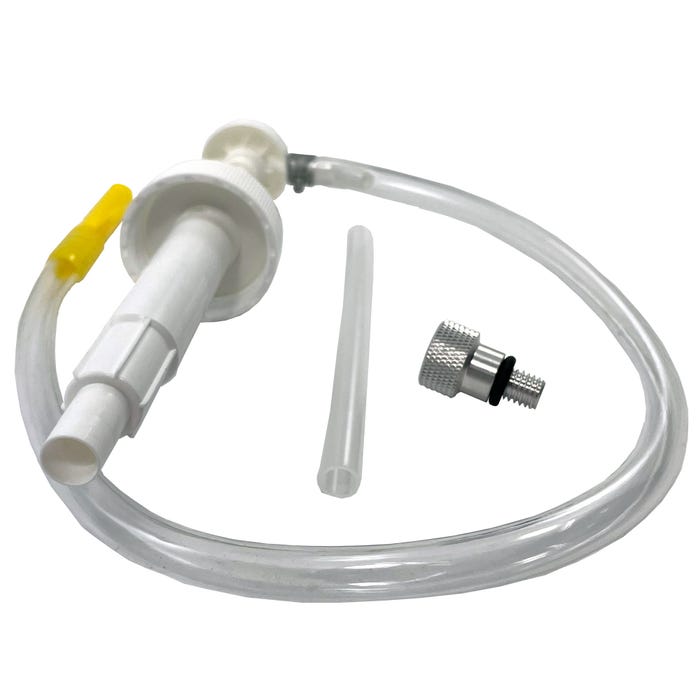

Gear Oil Pump | Suzuki 990C0-99002

Suzuki OEM Gear Oil Pump | 990C0-99002 | Ecstar Quart Bottle | Replaces 990C0-99001

The Suzuki #990C0-99002 is the OEM gear oil pump designed for use with Ecstar quart-sized oil bottles for Suzuki outboard service. It threads directly onto standard Ecstar quart bottles and allows controlled, spill-free delivery of engine oil or gear lube during routine maintenance — eliminating the awkward pour-and-funnel method that spills oil on the engine and bilge. Replaces superseded Suzuki part 990C0-99001. An essential tool for anyone performing their own Suzuki outboard maintenance.

Part Details:

• Part Number: 990C0-99002
• SKU: SUZUKI-990C0-99002
• Manufacturer: Suzuki (OEM)
• Type: Gear Oil Pump — Bottle-Mount Dispensing Pump
• Compatible With: Ecstar quart-sized oil and gear lube bottles
• Replaces: Suzuki 990C0-99001
• Use: Engine oil delivery and gear lube fill during Suzuki outboard maintenance
• Condition: New, Genuine OEM Suzuki

Additional Information

How the Suzuki Gear Oil Pump Works:

The 990C0-99002 pump threads onto the neck of a standard Ecstar quart bottle and uses a hand-pump or squeeze mechanism to deliver oil in controlled amounts through a nozzle that can be directed into the fill port, sump, or lower unit drain hole. The pump eliminates the common frustrations of outboard oil changes: overfilling from an uncontrolled pour, spills on the engine midsection that attract dirt and cause corrosion, and the mess of removing a funnel from a small fill opening while hot oil drains back out. For the lower unit, a pump-style dispenser allows you to fill from the drain hole upward — the correct method for air-free lower unit gear lube fill — with precise control over fill rate.

Using the Correct Fill Method for Lower Unit Gear Lube:

Lower unit gear lube should always be filled from the bottom drain plug upward, not from the top fill plug downward. Filling from the bottom displaces air upward and out through the top vent/fill hole as gear lube rises, ensuring the lower unit is completely full without air pockets. A pump-style dispenser like the 990C0-99002 makes bottom-up filling practical — direct the nozzle into the lower drain plug hole and pump until gear lube appears at the top fill hole, then install the top plug first before removing the pump nozzle from the bottom hole to prevent siphoning back.

For a complete lower unit gear lube service setup, also see the Sierra Gear Lube Pump Hose Assembly (18-99526) — a replacement hose for gear lube pump kits that also replaces CDI 551-33HB.

Frequently Asked Questions

1. Will this pump work with non-Ecstar Suzuki-compatible oil bottles?
The 990C0-99002 is designed and sized for Ecstar quart bottles. Compatibility with other brands' quart bottles depends on whether the bottle neck thread matches the Ecstar standard. If you use non-Ecstar oil in your Suzuki outboard, verify that your oil bottle's neck thread is compatible with the pump before ordering, or use a separate pump kit designed for universal bottle fitment.

2. Can I use this pump for both engine oil and gear lube changes?
Yes — the Suzuki 990C0-99002 can be used for both engine oil delivery and lower unit gear lube fill, provided the Ecstar bottle being used matches the service (engine oil bottle for engine oil changes, gear lube bottle for lower unit service). Flush or wipe the pump between uses if switching between oil types to avoid cross-contamination.

3. What replaced the Suzuki 990C0-99001?
The 990C0-99002 is the current superseding part number for the Suzuki 990C0-99001 gear oil pump. They serve the same function; the -99002 is the current production version. If your parts reference shows 990C0-99001, order the 990C0-99002.

4. How do I properly fill a Suzuki outboard lower unit with gear lube?
Remove both the lower drain plug and the upper vent/fill plug. Insert the pump nozzle into the lower drain hole and pump gear lube upward until it flows out the upper hole without bubbles, indicating the lower unit is full. Install the upper plug first while the pump nozzle is still in the lower hole, then quickly remove the nozzle and install the lower plug. Replace both sealing washers or O-rings each service — reused drain plug sealing rings are a leading cause of slow lower unit leaks.
