Gimbal Ring Upper Swivel Shaft | Sierra 18-73131

Sierra 18-73131 Gimbal Ring Upper Swivel Shaft | MerCruiser 866718A01, 98230A1 | Sterndrive Steering

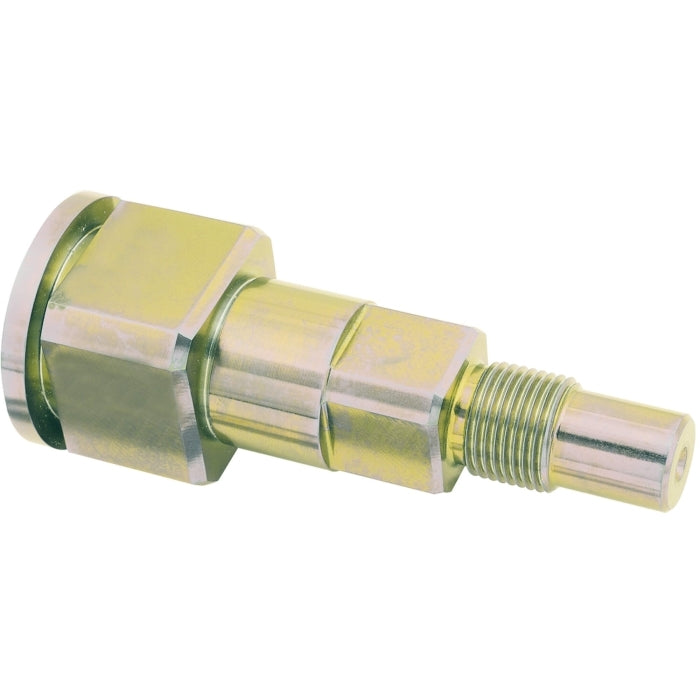

The Sierra #18-73131 is a replacement upper swivel shaft for the MerCruiser sterndrive gimbal ring assembly. The upper swivel shaft is the pivot point at the top of the gimbal ring that allows the sterndrive to steer left and right. Replaces MerCruiser 866718A01 and 98230A1; Mallory 9-73131.

Part Details:

• Part Number: 18-73131 (Sierra)
• SKU: SIERRA-18-73131
• Manufacturer: Sierra
• Type: Gimbal Ring Upper Swivel Shaft
• Application: MerCruiser sterndrive
• Condition: New

Cross-Reference — Replaces:

• MerCruiser: 866718A01, 98230A1
• Mallory: 9-73131

Additional Information

What the Upper Swivel Shaft Does — Gimbal Ring Function:

The gimbal ring is the structural frame that connects the MerCruiser sterndrive to the transom and allows the drive to pivot for steering and trim. The gimbal ring pivots on two axes: the upper and lower swivel shafts (for steering left/right) and the tilt tube (for trim up/down). The upper swivel shaft is the top pivot pin of the gimbal ring — it passes through the upper gimbal ring bore and the transom bracket, carrying the lateral steering loads as the drive swings left and right. It is a high-load wear component subject to corrosion, brinelling, and wear from steering forces and vibration.

Upper Swivel Shaft Wear — Symptoms and Causes:

The upper swivel shaft is one of the most common wear points in the MerCruiser sterndrive gimbal assembly. It operates in a wet, corrosive environment under significant steering load. Failure symptoms include:

• Steering slop or play — excessive free movement in the steering wheel before the drive responds; often caused by a worn or loose upper swivel shaft in the gimbal bore
• Clunking or knocking when turning at the helm — worn shaft allowing impact between shaft and bore
• Corrosion or pitting visible on the shaft surface when the drive is removed
• Difficulty steering or uneven steering effort — a corroded or galled shaft binding in the bore
• Visible shaft wear or grooving at the gimbal ring bore contact area

A worn upper swivel shaft should be replaced promptly — steering slop caused by shaft wear will worsen progressively and affects vessel handling and safety.

Inspect Gimbal Ring Bores During Shaft Replacement:

When replacing the upper swivel shaft, inspect the gimbal ring upper bore and transom bracket bore for wear, corrosion, or elongation. A worn shaft in a worn bore will cause the new shaft to fail prematurely. If the bore is worn beyond the service limit specified in the MerCruiser service manual, the gimbal ring or transom bracket will also require replacement. Inspect and replace the upper swivel shaft needle bearing (if applicable for your drive generation) at the same service.

MerCruiser Sterndrive Greasing — Upper Swivel Shaft:

The upper swivel shaft and gimbal ring pivot points require regular greasing per MerCruiser's maintenance schedule. MerCruiser specifies greasing the gimbal ring pivot points (upper and lower swivel shafts) at every 50 hours or annually. Neglecting grease intervals accelerates corrosion and wear on the shaft and bore surfaces, leading to premature replacement. Use a marine-grade water-resistant grease compatible with MerCruiser's specification for the gimbal ring — refer to the MerCruiser service manual for your drive generation.

Installation Notes:

• Confirm part number against MerCruiser parts catalog for your specific sterndrive model and generation before ordering
• Inspect upper and lower gimbal ring bores for wear before installing new shaft — worn bores require gimbal ring replacement
• Inspect and replace upper swivel shaft needle bearing at the same service if applicable
• Apply marine-grade grease to shaft and bore per MerCruiser service manual specification during installation
• Torque shaft fasteners to MerCruiser service manual specification
• Check steering play after installation before returning vessel to service

Frequently Asked Questions

1. What is the upper swivel shaft and what does it do?
The upper swivel shaft is the top pivot pin of the gimbal ring on MerCruiser sterndrive installations. It carries the steering loads as the drive pivots left and right. Wear or corrosion on this shaft causes steering slop, clunking, and ultimately unsafe steering feel.

2. How do I know if my upper swivel shaft needs replacement?
Key indicators are steering slop or play (excessive free movement before the drive responds), clunking when turning, or visible corrosion and wear on the shaft when the drive is removed. Inspect the shaft during any sterndrive removal service.

3. Should I inspect the gimbal ring at the same time?
Yes — inspect the upper gimbal ring bore and transom bracket bore for wear when replacing the shaft. A worn bore will cause a new shaft to fail prematurely. Replace the gimbal ring if the bore is worn beyond the MerCruiser service limit.

4. How often should the gimbal ring pivot points be greased?
Every 50 hours or annually per MerCruiser's maintenance schedule. Regular greasing is the primary defense against corrosion and premature wear on the upper swivel shaft, lower swivel shaft, and tilt tube.

5. Does this shaft fit both Alpha and Bravo drives?
Confirm by cross-referencing MerCruiser part numbers 866718A01 or 98230A1 against your specific drive model and generation in the MerCruiser parts catalog. Alpha One and Bravo series drives use different gimbal ring configurations — confirm the correct part number for your drive before ordering.
