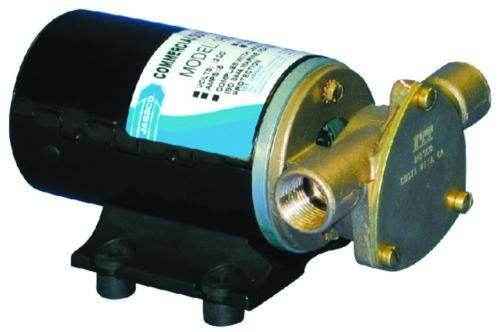

Jabsco 186700-0123 Pump 12V-Com-Duty Water Puppy

Jabsco 186700-0123 Pump 12V-Com-Duty Water Puppy

JABSCO

  • $399.27
    Unit price per
  • Save $27.71

Only 0 left!


Jabsco 186700-0123 Pump 12V-Com-Duty Water Puppy

This bronze body, self-priming impeller pump will produce a dry prime suction lift of about 6' and has a maximum head of 20'. Use for bilge pumping, livewell circulation, washdown, and general pumping applications. Cannot be run dry. Permanent magnet type motor is fully enclosed with a stainless steel shaft and has adequate torque to reverse the pump. Complies with USCG Electrical Standards 183.410 and ISO 8846 marine for ignition protection on gasoline powered vessels. Ports: 1/2" internal pipe threads, 1" external hose barb & 3/4" external garden hose adapter.


  • Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protected)

  • ISO 8849 MARINE (Bilge Pump Standard)

  • Fitting: Connections for 1" (25mm) ID hose, or 1/2" NPT male threads. Do not use plumbing of less than 3/4" (19mm) internal diameter

  • Size: 7 1/8" long x 4 3/4" wide x 3 1/2" high(18.1cm x 12.1xm x 8.9cm)

  • Weight: 8 lb (3.6 kg)

  • 12 Volt dc model, fuse 15 amp

  • 470 gph (1770 lph) output at 10ft (3m) total head

  • Self-priming up to 6ft (2.4m) vertical lift
