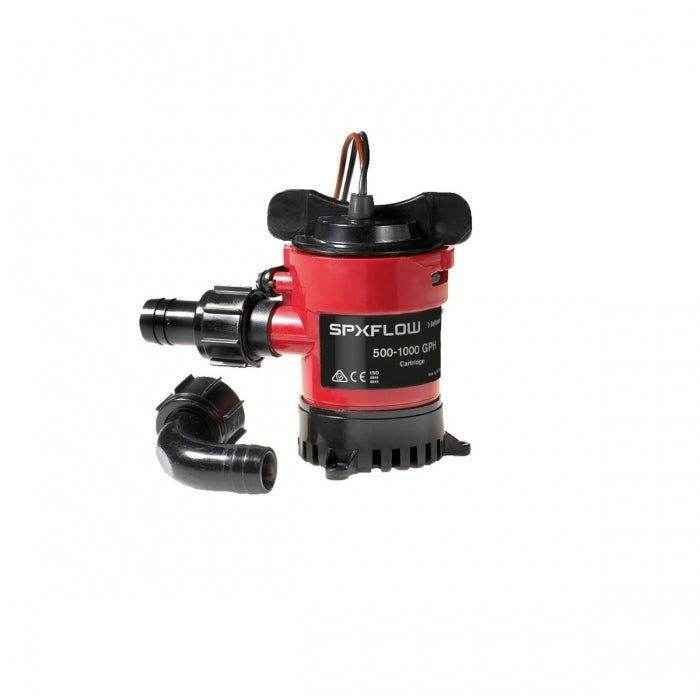

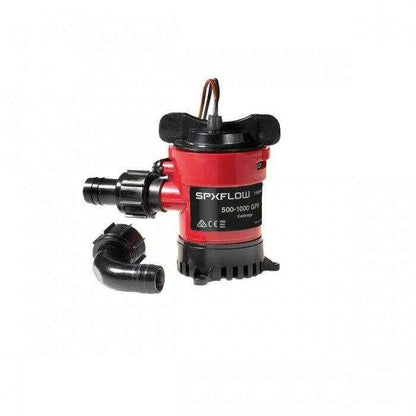

500 GPH Cartridge Bilge Pump | Johnson Pump 32503
12 volt non-automatic submersible pump with 3/4 in. discharge outlet is activated by an external float switch & features an easy-to-replace twist lock motor cartridge.
- Johnson Pump cartridge bilge pump
- Quickly and easily remove cartridge motor for cleaning or replacement without tools
- 12 volt DC operation
- For use with a float switch or panel switch
- 630 GPH flow rate straight
- 525 GPH flow rate @ 3 ft. of head
- Includes both straight and 90 degree Dura-Port 3/4 in. hose barb discharge ports
- Removable check valve
- 2.5 amp draw
- 5 amp fuse size
- Efficient motor conserves energy with low amp draw
- Water cooled motor for long service life
- Flow of pump can be increased with the replacement of the cartridge motor with a higher output cartridge
- 2.75 in. diameter x 4.4 in. height
- Meets ISO 8849 Marine and CE standards
