101 Series Standard Trim Tab Actuator 2.25 inch Stroke - 12 Volt | Lenco Marine 15054-001
101 Series Standard Trim Tab Actuator 2.25 inch Stroke - 12 Volt | Lenco Marine 15054-001
Lenco Marine
18 in stock
Couldn't load pickup availability
101 Series Standard Trim Tab Actuator 2.25 inch Stroke - 12 Volt | Lenco Marine 15054-001
101 Series Standard Trim Tab Actuator 2.25 inch Stroke - 12 Volt | Lenco Marine 15054-001
Lenco Marine 101 Series Standard Trim Tab Actuator 2.25 inch Stroke - 12 Volt | 15054-001

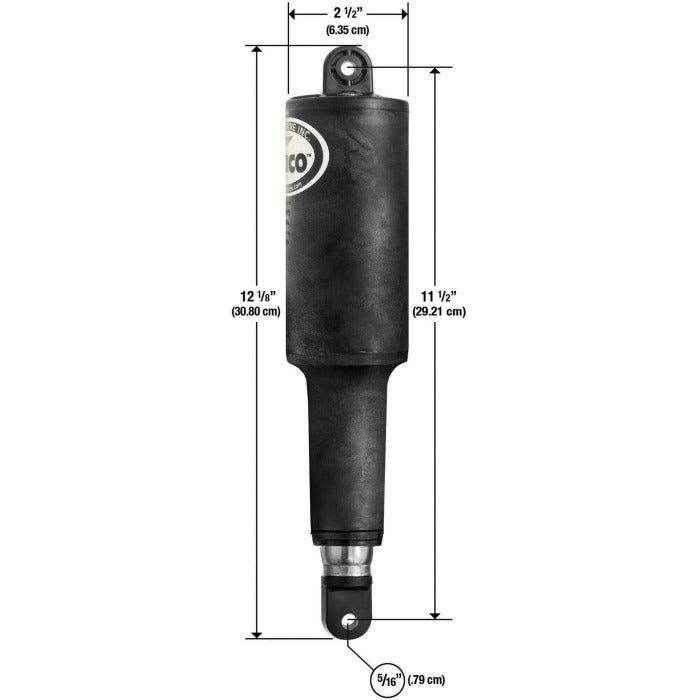

Replacement 101 series standard electric actuator for Lenco standard, edge mount, & standard performance trim tabs. 2-1/4 inch stroke, 12-1/2 inches tip-to-tip.
- Lenco 101 standard actuator
- 12 volt DC operation
- 2 1/4 in stroke
- 12 1/8 in. overall length when fully retracted
- 11 1/2 in. pin to pin length
- 6 ft. cable
- 5/16 in top and bottom cap hole sizes
- Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing
- High-impact UV resistant nylon 66, 50% glass fiber reinforced thermoplastic housing
- Corrosion proof Vandar cap and mounts
- Stainless steel ram will not flex
- Self-locking ballscrew locks into position and is twice as powerful compared to typical hydraulics
- High-torque motor easily pushes 750 lbs
- Double o-ring design for a reliable seal
- CE certified
- 3 year warranty
! Compatibility references are provided for informational purposes only and do not constitute a fitment guarantee. Part numbers, application listings, and "replaces" cross-references are based on manufacturer data and are intended as a starting point for identification — not a guarantee of fit for your specific engine, hull, or installation.
Buyer is solely responsible for verifying compatibility with their engine model, serial number, model year, and trim configuration before purchase. If you are unsure whether this part fits your application, contact MacombMarineParts.com before you buy — we're available via text, email, or online chat to help verify compatibility for your specific application.
MacombMarineParts.com is not liable for parts ordered based on assumed fitment. Returns due to buyer-selected incorrect fitment are subject to our standard return and restocking fee policies.
