Shurflo 357-103-10 — Piranha 1100 GPH Livewell Pump, 12V DC

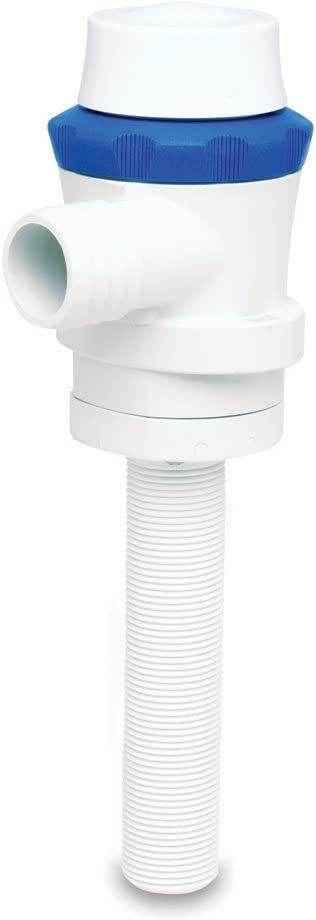

The Shurflo 357-103-10 is a 12V DC livewell pump from the Piranha series, rated at 1100 GPH. Designed for fishing boat livewell and baitwell applications, it includes a built-in dual-port fitting for washdown connections and an anti-airlock feature that allows the pump to self-clear trapped air — useful when the boat is at anchor or running in rough water. The removable cartridge simplifies cleaning and maintenance without tools.

Part Specifications

• Part Number: 357-103-10
• Flow Rate: 1100 GPH
• Voltage: 12V DC
• Wire Assembly: Tinned 6 ft. wire assembly
• Housing: Tough nylon
• Certifications: ISO 8846 (ignition protection), CE listed
• Warranty: 2 years
• Voltage, fuse, and port sizes: Confirm in Shurflo 357-103-10 documentation

Key Features

• Removable cartridge — easy cleaning and serviceability without tools
• Anti-airlock — self-clears trapped air in rough water or at anchor
• Built-in washdown port — dual-port fitting allows simultaneous livewell and washdown connections
• Ignition protected — ISO 8846 compliant for marine fuel-vapor environments
• Tinned wire assembly — 6 ft. tinned leads resist corrosion in wet bilge environments

Installation Notes

• Confirm fuse rating in Shurflo documentation before wiring
• Use tinned marine-grade wire for all connections; keep runs short to minimize voltage drop
• Mount with inlet submerged; do not run dry
• Dual-port fitting supports washdown connection — plan plumbing layout before installation
• Verify polarity before connecting — reverse polarity will damage the motor
• ISO 8846 ignition protection required for installation near fuel vapors

Additional Information

• Vendor: Shurflo
• SKU: SHUR-357-103-10
• Product Type: Livewell Pump
• Country of Origin: United States
• Weight: 2 lbs
• HS Code: 841290 (confirm — may be more accurately classified under 8413.70 or 8413.81 for centrifugal pumps)

Frequently Asked Questions

Q: What does the anti-airlock feature do?
A: The anti-airlock feature allows the pump to self-clear trapped air from the inlet line. This is particularly useful when the boat is anchored or running in choppy water where air can enter the pump and stall flow.

Q: Can I use this pump for a washdown connection?
A: Yes. The 357-103-10 includes a dual-port fitting that allows simultaneous livewell circulation and a washdown hose connection without additional fittings.

Q: How do I clean the pump?
A: The Piranha series pump includes a removable cartridge that can be pulled and cleaned without tools. Regular cleaning of the cartridge helps maintain flow rate and extends pump life.

Q: Is this pump ignition protected?
A: Yes. The 357-103-10 is ISO 8846 compliant, meaning it is ignition protected for installation in marine fuel-vapor environments. It is also CE listed.

Q: Will this pump run dry without damage?
A: No. Like most centrifugal livewell pumps, this pump should not be run dry. Ensure the inlet is submerged before operating and use a float switch or timer if needed to prevent dry-run conditions.
