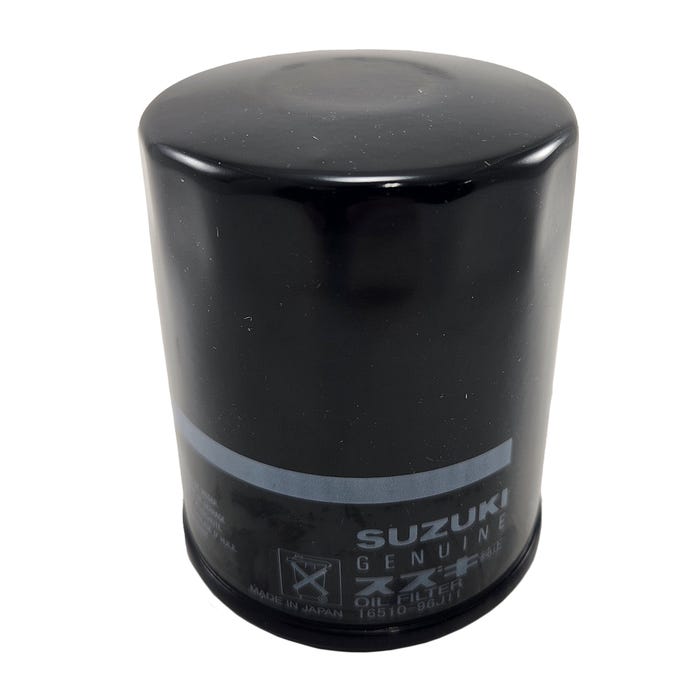

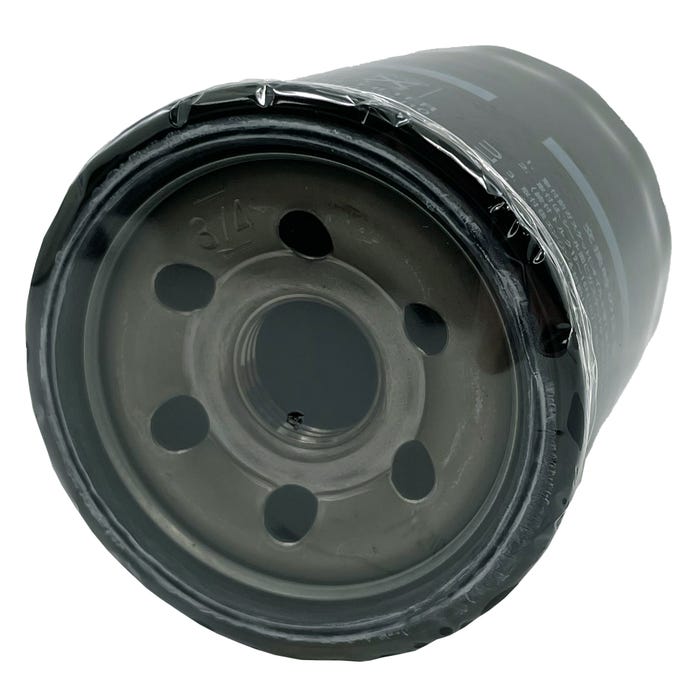

Suzuki 16510-96J11 Oil Filter Assembly - Replaces 16510-96J10 & 16510-96J00

Suzuki 16510-96J11 — Oil Filter Assembly | Suzuki Outboard Engines | Replaces 16510-96J10 & 16510-96J00

Oil and filter changes are the single highest-return maintenance task on any Suzuki outboard, and the filter you use matters. The 16510-96J11 is the current genuine OEM oil filter assembly for this application — superseding both the 16510-96J10 and 16510-96J00. Built to the exact micron rating, bypass valve pressure, and anti-drainback specification your Suzuki outboard’s lubrication system requires. If your service manual lists either of the older numbers, this is the correct current replacement.

Part Specifications

• Suzuki Part Number: 16510-96J11
• Type: Oil filter assembly
• Application: Suzuki outboard engines
• Replaces Suzuki: 16510-96J10, 16510-96J00 (superseded)
• Anti-Drainback Valve: Yes — retains oil in filter between uses for immediate lubrication on startup
• Condition: New, genuine OEM
• Vendor: Suzuki

Confirm Fitment Before Ordering

Cross-reference 16510-96J11 (or superseded numbers 16510-96J10 or 16510-96J00) against your Suzuki outboard parts diagram or service manual. Give us your engine model and serial number and we’ll confirm the correct filter before you order — by email, text, or live chat.

Additional Information

• Vendor: Suzuki
• Part Number: 16510-96J11
• OEM Cross-Reference: Replaces Suzuki 16510-96J10 and 16510-96J00 (superseded)
• Application: Suzuki outboard engines — confirm fitment before ordering

Installation Notes

Install following the applicable Suzuki outboard service manual for your engine model. Replace the oil filter at every oil change interval — reusing an old filter with fresh oil introduces contamination from the spent filter media.

Frequently Asked Questions

Q: Why does the part number keep changing — is 16510-96J11 really the same filter as 96J10 and 96J00?
A: Yes — Suzuki issues successive part numbers as part of standard catalog revisions, not because the filter changed. The 16510-96J11 supersedes both older numbers. If your service manual or parts diagram lists either of the previous numbers, order the 16510-96J11.

Q: How often should I change the oil filter on my Suzuki outboard?
A: Suzuki generally recommends oil and filter replacement every 100 hours of operation or once per season, whichever comes first. Always replace the filter at every oil change — running fresh oil through a spent filter defeats the purpose and can reintroduce contamination.

Q: What does the anti-drainback valve do?
A: The anti-drainback valve prevents oil from draining out of the filter when the engine is off. Without it, the filter empties between uses and the engine runs dry for a brief period on every cold start — exactly when wear-causing metal-to-metal contact is most likely. The genuine Suzuki filter includes this valve as part of the OEM specification.

Q: Can I use an aftermarket oil filter on my Suzuki outboard?
A: Aftermarket filters that don’t meet the correct bypass valve pressure, micron rating, or anti-drainback spec for your Suzuki can allow unfiltered oil to bypass under cold starts or high-load conditions, fail to retain oil between uses, or introduce contamination — each of which accelerates internal engine wear. The genuine OEM filter is the correct choice for this application.
