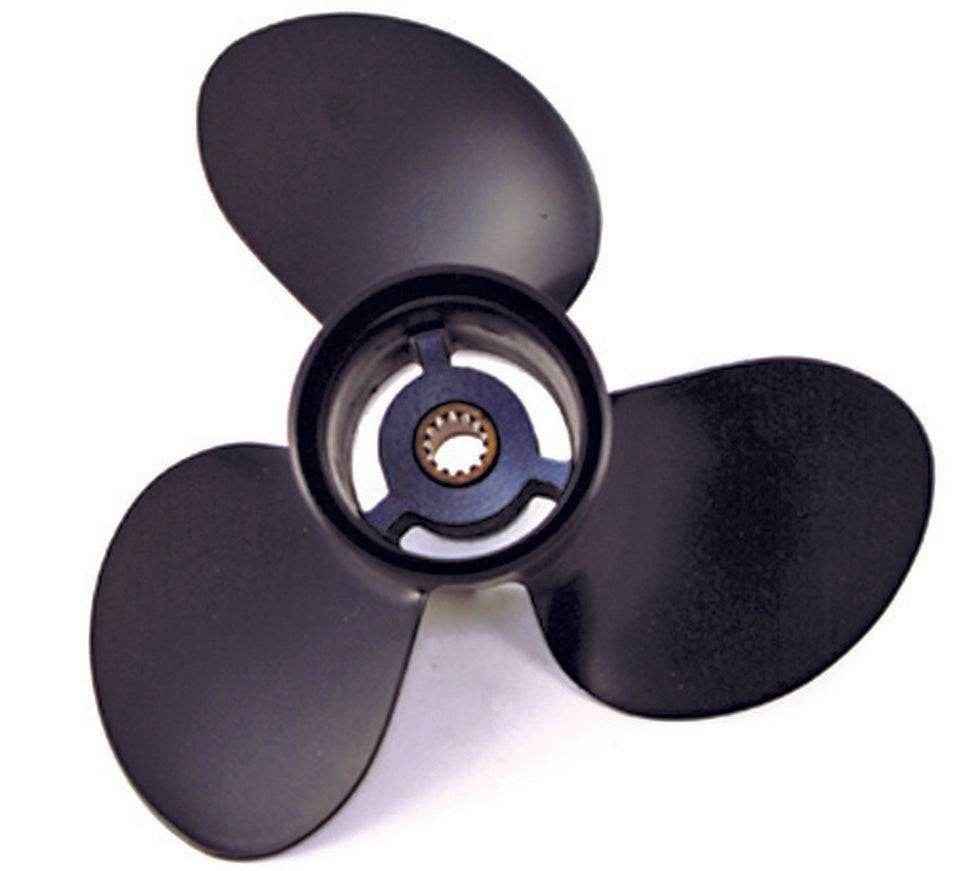

Black Diamond 9 X 10 1/2 RH 3 Blade Propeller | QuickSilver QA2130R

Black Diamond 9 X 10-1/2 RH Aluminum Propeller | Quicksilver QA2130R

9 X 10 1/2 Black Diamond 3 Blade RH Propeller | QuickSilver QA2130R

For good overall performance and value, the QuickSilver Black Diamond is your prop. While QuickSilver Black Diamond aluminum propellers are standard equipment on most boats with Mercury/Mariner/MerCruiser power, they are a perfect replacement for all engine brands through the use of the Quicksilver Flo Torq II hub system. The QuickSilver Black Diamond is recommended for use on boats with up to 250 Hp and with a top speed of less than 50MPH. The high quality casting and durable high-gloss Phantom Black finish make it easy to maintain & repair.

Boat Size 14'-16'

Engine Application

Force® 9.9-15 Horsepower

9.9 hp…1996-1998;
15 hp…1996-1998

Attaching Hardware:H33

Mercury/Mariner 6-15 Horsepower

6, 8, 9.9 & 15 hp (2-Stroke)…1986 & newer;
10, 15 hp (Seapro/Marathon)…1995 & newer;
8-9.9 hp (4 Stroke/Not Bigfoot)…1995-2004;
15 hp (4-Stroke)…1989-2006

Attaching Hardware:H36

Attaching Hardware

H33

Nut (nylock):
Sierra: 18-3721-9
Nut, spacer and washer kit:
Quicksilver: 11-64075A1
Thrust washer (forward):
Quicksilver: Not Available

H36

H36A

Nut (Nylock):
Quicksilver: 11-40140
Spacer Washer (Aft-splined):
Quicksilver: 23-42091
Thrust washer (forward, splined):
Quicksilver: 42037 (NLA)
Other: 92-22210
Thrust Washer, Spacer, Nut:
Other: 92-22215

H36B

Nut (Nylock):
Quicksilver: 11-40140
Spacer Washer (Aft-splined):
Quicksilver: 23-42091
Thrust washer (forward, splined):
Quicksilver: 92-21281
Thrust Washer, Spacer, Nut:
Other: 92-21285

H36C

Nut (Nylock):
Quicksilver: 11-40140
Spacer Washer (Aft-splined):
Quicksilver: 23-42091
Thrust washer (forward, unsplined):
Quicksilver: 821932
Thrust Washer, Spacer, Nut:
Other: 92-22216

H26D

Complete kit:
Quicksilver: 11-13914Q02
Nut (Nylock):
Quicksilver: 11-40140
Spacer Washer (Aft-splined):
Quicksilver: 23-42091
Thrust washer (forward, unsplined):
Quicksilver: 821932-1
Thrust Washer, Spacer, Nut:
Other: 92-21286

This product replaces:

710-QA2130R, TA2130T, 828158A12, 745061044166, 74506104416

QuickSilver Propeller Selector
