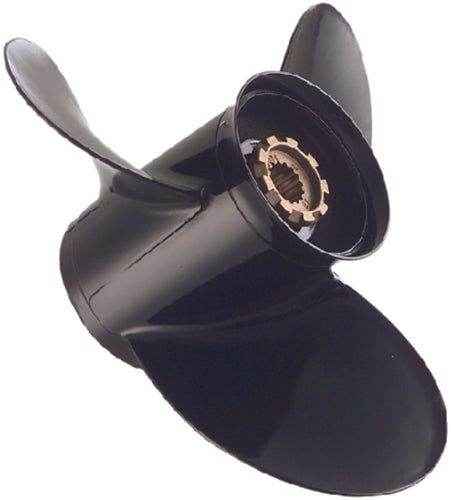

Black Diamond 13 3/4 X 15 RH 3 Blade Propeller | Quicksilver QA2208X

13 3/4 X 15 Black Diamond 3 Blade RH Propeller |Quicksilver QA2208X

For good overall performance and value, the QuickSilver Black Diamond is your prop. While QuickSilver Black Diamond aluminum propellers are standard equipment on most boats with Mercury/Mariner/MerCruiser power, they are a perfect replacement for all engine brands through the use of the Quicksilver Flo Torq II hub system. The QuickSilver Black Diamond is recommended for use on boats with up to 250 Hp and with a top speed of less than 50MPH. The high quality casting and durable high-gloss Phantom Black finish make it easy to maintain & repair.

Boat Size 19'-22'

Engine Application

Evinrude/Johnson® 45-75 Horsepower Large Gearcase

45 hp (2 Cyl. Commercial)…1986 & newer;
50 hp (2 Cyl.)…1971-74;
50 hp (2 Cyl. Commercial)…1977-79;
50 hp (3 Cyl.)…1994-99;
55 hp (3 Cyl.)…1968-69;
55 hp (2 Cyl. Commercial)…1980 & newer;
60 hp (3 Cyl.)…1970-71, 1986 & newer;
65 hp (3 Cyl.)…1972-73;
65 hp (3 Cyl. Commercial)…1984 & newer;
70 hp (3&4 Cyl. including 4-Stroke)…1974 & newer;
75 hp (3 Cyl.)…1975-84

Attaching Hardware:H25

Evinrude/Johnson® 85-140 Horsepower V-4 Outboard

85 hp (V-4)…1969-80;
85 hp (V-4)…1991-95;
88 hp (V4)…1981-96;
90 hp (V4)…1981 & newer;
100 hp (V-4)…1979-80;
100 hp (V-4)…1988-93;
110 hp (V-4)…1986-89;
112 hp (V-4)…1994-96;
115 hp (V-4)…1973 & newer;
120 hp (V-4)…1986-94;
125 hp (V-4)…1971-72;
135 hp (V-4)…1973-76;
140 hp (V-4)…1977-84

Attaching Hardware:H25

Suzuki 60-70 Horsepower 4-Stroke, 75-140 Hp 2-Stroke

DF 60…1998 & newer;
DF 70 hp…1998-2008;
DT 75 hp…1992-97;
DT 75 hp…1983-91;
DT 85 hp…1992-2000;
DT 85 hp…1979-91;
DT 90 hp…1989-97;
DT 100 hp…1989 & newer;
DT115, 140 hp…1992 & newer;
DT 115;
140 hp…1981-91

Model 400 And Cobra Omc

2.3L 120-128 hp…1978-90;
2.5L 120 hp…1978-89;
3.0L 130-140 hp…1978-89

Attaching Hardware:H76

Sea Drive 41/4” Gearcase Omc

1.6L V-4…1983 & newer;
1.8L V-4…1983 & newer Note: Add 2” of pitch for twin engines

Attaching Hardware:H76

Attaching Hardware

H25

Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915

H76

Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915
Michigan Wheel: 991210

This product replaces:

710-QA2208X, QA2208H, 745061736221
