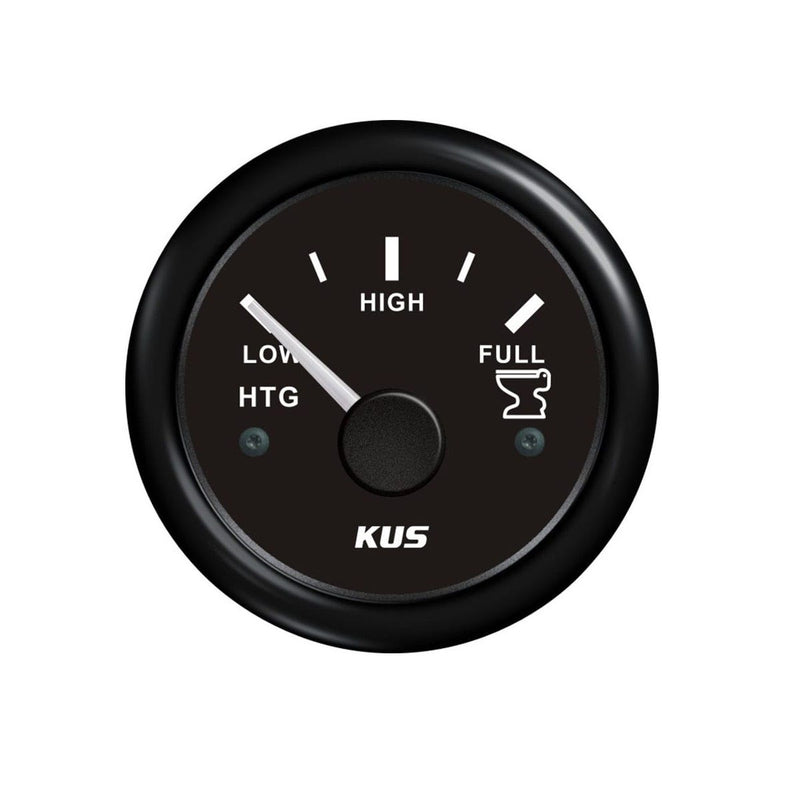

Sea V Black Face with Black Plastic Bezel Holding Tank Gauge | KUS JMV00039

KUS Sea V Holding Tank Level Gauge | JMV00039 | CPGR-BB-240-33 | Black Face, Black Bezel | 2" Mount | IP67

The KUS JMV00039 is the Sea V holding tank level gauge in black face with black plastic bezel finish. Model CPGR-BB-240-33 mounts in a standard 2-inch gauge opening, connects via multi-plug socket, and reads Empty to Full using standard 240–33Ω tank level senders. Rated IP67 for waterproof and dustproof protection — suitable for helm stations, flybridge, and enclosed or exposed panel installations. Compatible with 12V and 24V DC systems.

Part Details:

• Part Number: JMV00039 (KUS)
• Model: CPGR-BB-240-33
• SKU: KUS-JMV00039
• Manufacturer: KUS / Sea V
• Type: Holding Tank Level Gauge
• Face Color: Black
• Bezel: Black plastic
• Mounting Dimension: 2 in. (51 mm)
• Connection: Multi-plug socket
• Indicating Range: Empty – Full
• Input Signal: 240–33Ω (standard marine sender range)
• Protection Rating: IP67 (waterproof, dustproof)
• Condition: New

Additional Information

Sea V Gauge Family — Color and Bezel Options:

The KUS Sea V holding tank gauge is available in multiple face and bezel combinations to match your helm panel aesthetic. The CPGR model designation indicates the gauge function (holding tank level); the suffix identifies the finish and sender range:

• CPGR-BB-240-33 (JMV00039) — Black face, black plastic bezel — this product

If your panel uses a different bezel finish or face color, check the other Sea V holding tank gauge listings on MacombMarineParts.com for the matching variant. All Sea V CPGR variants use the same 2" mounting cutout, 240–33Ω sender range, and multi-plug socket connection.

240–33Ω Sender Compatibility:

The JMV00039 is calibrated for the standard marine 240–33Ω sender resistance range used by the majority of marine tank level senders. Verify your holding tank sender resistance specification before purchasing. Common compatible sender brands include Wema, KUS, Faria, and Rochester. If your vessel's holding tank sender uses a different resistance standard (e.g., 0–180Ω), this gauge will not read accurately without a sender replacement or signal converter.

2-Inch Mounting — Standard Panel Cutout:

The 2-inch mounting dimension refers to the panel cutout diameter required for installation. This is a standard gauge cutout size found on most marine helm panels and is compatible with standard 2" gauge bezels and mounting cups. Confirm the available cutout size on your panel before ordering.

Multi-Plug Socket Connection:

The JMV00039 uses a multi-plug socket connector rather than individual spade or screw terminals, simplifying installation and enabling clean disconnection for service. Ensure your wiring harness includes or is adapted to the matching KUS multi-plug connector.

IP67 Protection:

IP67 means the gauge is fully dust-tight and rated for temporary water immersion to 1 meter for up to 30 minutes — appropriate for exposed helm stations, open flybridge panels, and cockpit instrument locations subject to spray and wash-down.

Installation Notes:

• Panel cutout: 2 in. (51 mm) diameter
• Sender wiring: verify sender resistance is 240–33Ω before connecting
• Grounding: use a clean, dedicated ground — poor grounds cause erratic level gauge readings
• Socket connector: confirm wiring harness compatibility with the KUS multi-plug before installation

Frequently Asked Questions

1. What is the difference between the Sea V gauge variants?
All Sea V CPGR holding tank gauges share the same 2" mounting, 240–33Ω sender range, and multi-plug connection. The variants differ in face color and bezel finish only. The JMV00039 (CPGR-BB-240-33) is black face with black plastic bezel. Check other Sea V listings on MacombMarineParts.com for white face, chrome bezel, or other finish combinations.

2. What sender resistance does this gauge require?
The JMV00039 requires a 240–33Ω sender. This is the standard resistance range for most marine tank level senders from KUS, Wema, Faria, and Rochester. Verify your holding tank sender's resistance specification before purchasing — a mismatched sender will produce inaccurate Empty/Full readings.

3. What size hole does this gauge require?
A standard 2-inch (51 mm) panel cutout. Confirm the available cutout size on your dash panel before ordering.

4. Is this gauge compatible with a 24V system?
Yes — the Sea V CPGR gauge operates on both 12V and 24V DC electrical systems.

5. Can this gauge be used for tanks other than holding tanks?
The gauge face reads Empty to Full and is calibrated for any 240–33Ω sender, so it can physically display the level of any tank type — fuel, fresh water, gray water, or holding. The gauge face graphics are generic (Empty–Full) without a tank-type-specific label, making it usable across tank types. Confirm your application's sender resistance is 240–33Ω.
