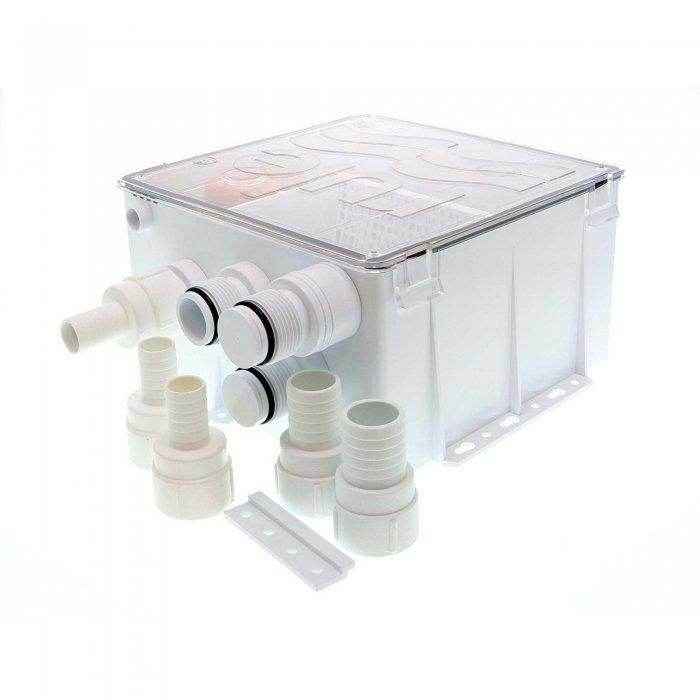

This 800 GPH 12V drain box system by Rule is designed to collect, strain, and automatically discharge gray water from up to three sources with ease. Typical gray water sources include shower drains, cockpit drains, basin drains, and air conditioning condensate drains.
800 GPH 12 Volt Shower Drain Box | Rule 98B
800 GPH Shower Drain Pump
12 Volt DC operation
5 amp fuse is recommended
5 inch Height x 9.5 inch Width x 9 inch Depth
Box is Fitted with Three (3) Threaded Inlet Ports and One (1) Threaded Discharge Port
All 3 inlet ports arrive sealed and include cut points as a saw guide and drill points to center the drill point to assist in opening up the port(s) of choice
Supplied Straight Pipe-to-Hose Barb Fittings thread onto the inlet and discharge ports at the users discretion: (3) 3/4 inch, (1) 1 inch, (1) 1-1/8 inch
90 degree Pipe-to-Hose Barb Fittings Sold Separately
Includes an Optional Rear Mounting Bracket to simplify the mounting process in confined spaces
Features an Impact Resistant Polycarbonate Lid with gasket
Updated Cover features a Snap Lock Lid which allows quick and easy access to the filter (Previous version required the removal of four screws to gain access to the strainer)
Includes an updated Easy Clean Strainer which slides out of the box with ease
Float Switch base mounted into the box. Simple compression of base tabs allows for the quick and easy removal for routine cleaning and maintenance
Friction fit pump pops right out for quick and easy cleaning and maintenance
Includes a large Joker valve on the outlet side which allows for more flow
