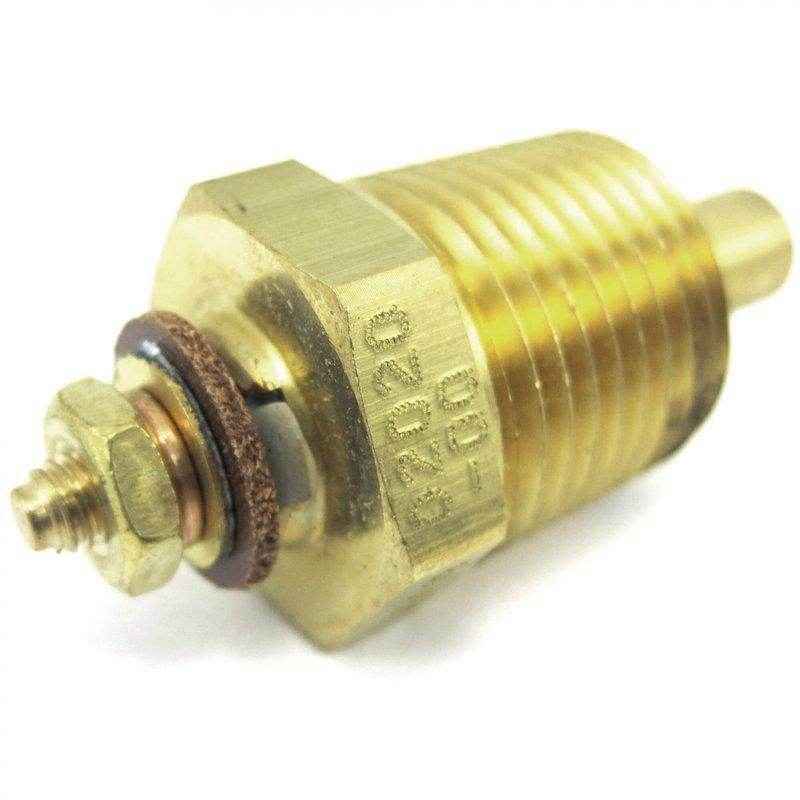

Volvo Penta 3852029 — Single Station Temperature Sender | 1/2 in. NPT
Volvo Penta 3852029 is the OEM single station engine temperature sender. It mounts in a 1/2 in. NPT port and sends a signal to your temperature gauge via a 10-32 stud terminal. Designed for use with US ohm scale temperature gauges. This is a single station unit — if your dash uses two gauges reading off one sender, you'll need a dual station sender instead.
Confirm Fitment Before Ordering
Not sure if this is the right sender for your engine? Give us your Volvo Penta engine model and serial number and we'll confirm it for you before you order — by email, text, or live chat.
Part Specifications
- Volvo Penta Part Number: 3852029
- Type: Single station engine temperature sender
- Thread Size: 1/2 in. NPT
- Terminal: 10-32 stud terminal
- Gauge Compatibility: US ohm scale temperature gauges
- OEM: Original Volvo Penta
Additional Information
- Vendor: Volvo Penta
- Part Number: 3852029
- Fits: Volvo Penta 3.0GL, 3.0GS, 4.3GL, 4.3GS, 4.3GI, 5.0FI, 5.7GL, 5.7GI, 5.8FL, 5.8FI, 5.8FSI, and 7.4GL marine engines
Installation Notes
Install following the applicable Volvo Penta service manual for your engine model.
Frequently Asked Questions
Q: How do I know if this is the right temperature sender for my engine?
A: Check the fitment list above. If you're still not sure, send us your Volvo Penta engine model and serial number and we'll confirm it for you — by email, text, or live chat.
Q: What's the difference between single station and dual station senders?
A: A single station sender sends a signal to one gauge. A dual station sender sends a signal to two gauges from the same sender, which is used on boats with dual helm stations or a matched pair of gauges. The 3852029 is single station only.
Q: Will this sender work with my existing temperature gauge?
A: This sender is designed for US ohm scale temperature gauges. If your gauge uses a different scale (such as European/SW), it won't read correctly with this sender.
Q: What thread sealant should I use when installing this sender?
A: Use a thread sealant rated for engine coolant service, applied per the instructions in your Volvo Penta service manual. Avoid overtightening, which can crack the sender housing.
Q: Does this sender include the stud terminal connector?
A: The sender includes the 10-32 stud terminal itself. Confirm your existing wiring harness connector is compatible, or contact us for guidance.
