620 Blue Run-Dry Impeller | Globe 01-12-1460

Globe 620 Blue Run-Dry Impeller | 01-12-1460 | Brandonite | Keyway | Crusader PCM Sherwood Onan Westerbeke

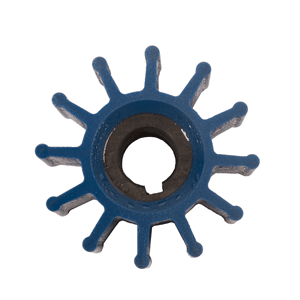

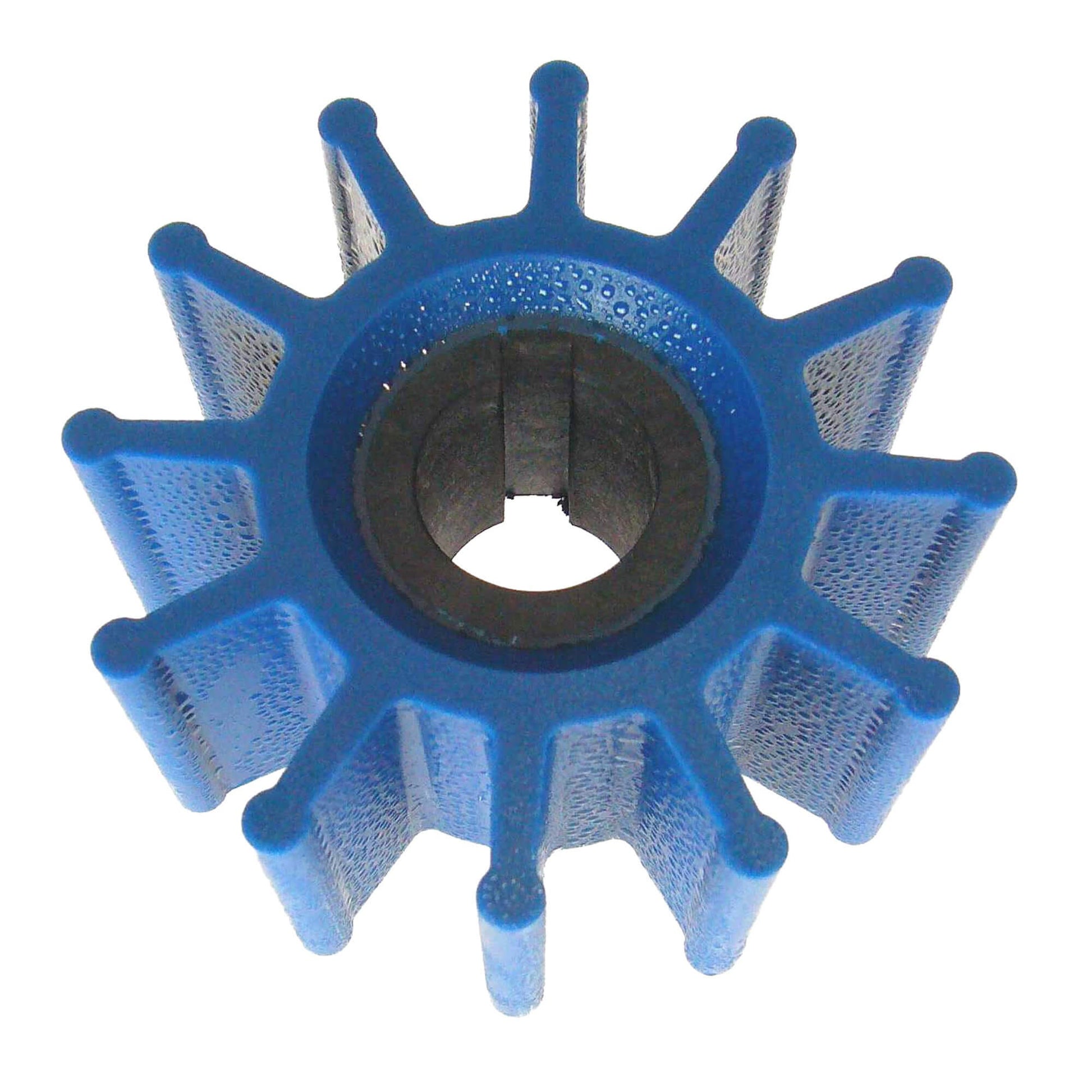

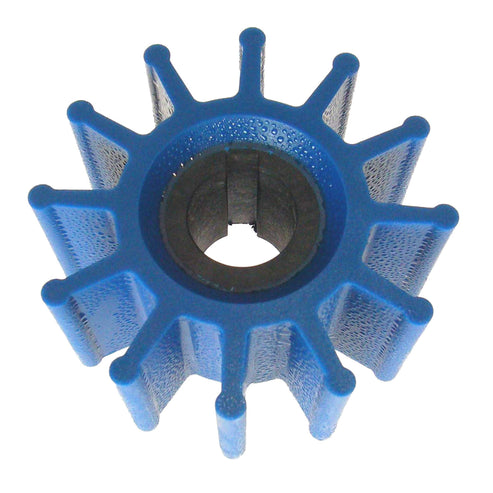

The Globe #01-12-1460 is the 620 Blue run-dry impeller manufactured from Globe's Brandonite compound — a high-strength, self-lubricating elastomeric material guaranteed to run dry for 15 minutes without damage. The 620 Blue is a keyway-drive, 12-blade Brandonite impeller with a 2-7/16" OD, covering Crusader, Cummins, Onan, PCM, Perkins, Sherwood, Volvo Penta, Westerbeke, OMC, and Chris-Craft raw water cooling pump applications. Includes matching gaskets and/or O-rings. Delivers up to 3x the service life of standard rubber, nitrile, or neoprene impellers. Water applications only.

Part Details:

• Part Number: 01-12-1460 (Globe)
• SKU: GLOBE-01-12-1460
• Impeller Designation: 620 Blue
• Manufacturer: Globe
• Type: Run-Dry Flexible Impeller — Brandonite Compound
• Drive Type: Keyway (woodruff key)
• Core: Composite
• Blades: 12
• Outer Diameter: 2-7/16 in. / 62 mm
• Width: 1-1/4 in. / 31.5 mm
• Shaft Diameter: 5/8 in. / 16 mm
• Silhouette: I
• Liquid: Water only
• Includes matching gaskets and/or O-rings
• Condition: New

Cross-Reference — Replaces:

• Chris-Craft: 16.80-90049, 16.80-90166
• Crusader: 22212, 1003026
• Cummins: 3908220
• Jabsco: 18838-0001
• Johnson Pump: 09-701B-1
• Onan: 24880178, 132-0117, 132-0317
• Outboard Marine (OMC): 3854286
• PCM: R061015
• Perkins: NA900010, 24880178
• Sherwood: 09959K
• Sierra Marine: 18-3046, 18-3060
• Volvo Penta: 835512, 3854286
• Westerbeke: 11418, 11907, 33104

Additional Information

620 Blue vs. 625 Blue — Both Keyway, Different OD:

The 620 Blue and 625 Blue are both keyway-drive, 12-blade Brandonite impellers with a 5/8" shaft but serve different pump housings — they are NOT interchangeable:

• Globe 625 Blue (01-12-1480) — keyway, 12-blade, 2-9/16" OD × 1-5/8" wide, Silhouette J; replaces Crusader R061017, PCM R061017/RP061017, Sherwood 10615/10615K, Sierra 18-3047/18-3061, Jabsco 18948-0001 — see the Globe 625 Blue (01-12-1480)
• Globe 620 Blue (01-12-1460) — keyway, 12-blade, 2-7/16" OD × 1-1/4" wide, Silhouette I; replaces Crusader 22212/1003026, PCM R061015, Sherwood 09959K, Sierra 18-3046/18-3060, Jabsco 18838-0001

The Sherwood pump model number is the most reliable differentiator: Sherwood 09959K → Globe 620 Blue; Sherwood 10615K → Globe 625 Blue. If you have a Crusader, PCM, or Volvo Penta application, confirm by the specific OEM part number rather than brand name alone, as both impellers cover different models within those brands.

Sherwood Pump — Multi-Brand OEM Application:

As with the 625 Blue, the 620 Blue's cross-reference list reflects a Sherwood raw water pump (09959K) OEM-supplied to multiple engine manufacturers. The Crusader 22212/1003026, PCM R061015, Jabsco 18838-0001, and Sherwood 09959K cross-references all point to the same underlying pump housing. This explains why Crusader, PCM, Cummins, and Volvo Penta appear in the same cross-reference list.

Shared Part Numbers Across Brands:

Two cross-reference numbers appear across multiple brands in this listing:

• 24880178 — listed under both Onan and Perkins; this is the same impeller part number used by both manufacturers for their respective pump applications in this housing size
• 3854286 — listed under both Volvo Penta and OMC; this part number was shared between Volvo Penta and OMC (Outboard Marine Corporation), reflecting common pump sourcing between the two brands in certain engine families

Onan Marine Generator — Three Part Numbers:

The 620 Blue replaces Onan 24880178, 132-0117, and 132-0317 — three Onan genset raw water pump impeller references covering different generator models or catalog revisions. Confirm your specific Onan genset's impeller part number from your service manual before ordering. For reference, the complete Onan cross-reference map across the Globe Blue lineup:

• Onan 132-0292 / 132-0348 / 132-0349 → Globe 625 Blue (01-12-1480)
• Onan 132-0310 → Globe 1112 Blue (01-12-1700)
• Onan 132-0316 → Globe 815 Blue (01-12-1540)
• Onan 24880178 / 132-0117 / 132-0317 → Globe 620 Blue (01-12-1460) — this product

Cummins 3908220 — Also on Globe 625 Blue:

Cummins 3908220 appears in the cross-reference list for both the 620 Blue and the 625 Blue. This reflects different Cummins engine configurations that use different pump housings despite sharing a common Cummins part number reference in some catalog versions. Confirm the correct Globe impeller for your Cummins application by cross-referencing the Sherwood or Jabsco pump model number from your engine's raw water pump, or contact us at MacombMarineParts.com with your Cummins engine model and serial number for fitment confirmation.

Brandonite Run-Dry Technology:

• 15-minute guaranteed run-dry rating — standard impellers fail in under 30 seconds dry
• Up to 3x service life vs. rubber/nitrile/neoprene under normal wet operation
• Post-dry-run serviceability — inspect after a dry-run event; if undamaged, can return to service without mandatory replacement

For other Globe Brandonite run-dry impellers, also see:

• Globe 625 Blue (01-12-1480) — keyway, 12-blade, 2-9/16" OD × 1-5/8" wide; replaces Crusader R061017, PCM R061017, Sherwood 10615K, Sierra 18-3061
• Globe 100 Blue (01-12-1060) — 12-pt spline, 8-blade, 2-9/16" OD × 2" wide; replaces Caterpillar, Cummins, Jabsco, Volvo
• Globe 6541 Blue (01-12-1830) — pin drive, 6-blade, 2" OD, 1/2" shaft; replaces Volvo Penta, MerCruiser, Jabsco
• Globe 331M (01-12-1290) — pin drive, 6-blade, 2" OD, 12mm shaft; replaces Jabsco, Yanmar, Westerbeke, Vetus

Frequently Asked Questions

1. How do I tell the difference between the 620 Blue and the 625 Blue?
The most reliable differentiator is the Sherwood pump model: Sherwood 09959K → 620 Blue; Sherwood 10615K → 625 Blue. For Crusader, PCM, and Volvo Penta applications, confirm by the specific OEM part number from your engine's parts diagram — both impellers cover different models within those brands. Contact us at MacombMarineParts.com with your OEM part number for confirmation.

2. Which Onan part numbers does this impeller replace?
The Globe 01-12-1460 replaces Onan 24880178, 132-0117, and 132-0317. For other Onan genset impellers, see: Onan 132-0292/0348/0349 → Globe 625 Blue; Onan 132-0310 → Globe 1112 Blue; Onan 132-0316 → Globe 815 Blue. Always confirm your genset's specific part number from the service manual before ordering.

3. My Cummins part number is 3908220 — is this the right impeller?
Cummins 3908220 appears on both the 620 Blue and the 625 Blue, reflecting different Cummins engine pump configurations. Confirm the correct impeller by identifying the Sherwood or Jabsco pump model number on your engine's raw water pump body, then cross-reference to the correct Globe part. Contact us at MacombMarineParts.com with your Cummins engine model and serial number for fitment confirmation.

4. Does this impeller include gaskets and O-rings?
Yes — the Globe 01-12-1460 includes matching gaskets and/or O-rings for the pump cover. Replace all included sealing components at each service — do not reuse old gaskets or O-rings when reinstalling the pump cover.

5. What does it mean that Volvo Penta 3854286 and OMC 3854286 are the same number?
Volvo Penta and OMC (Outboard Marine Corporation) shared pump sourcing on certain engine families, resulting in the same part number appearing under both brands. If your engine is branded Volvo Penta or OMC and the impeller part number is 3854286, the Globe 620 Blue (01-12-1460) is the correct Brandonite replacement.
