Sea V White Face Stainless Bezel Holding Tank Gauge | KUS JMV00004

KUS Sea V Holding Tank Level Gauge | JMV00004 | CPGR-WS-240-33 | White Face, Stainless Bezel | 2" Mount | IP67 | Empty–Full

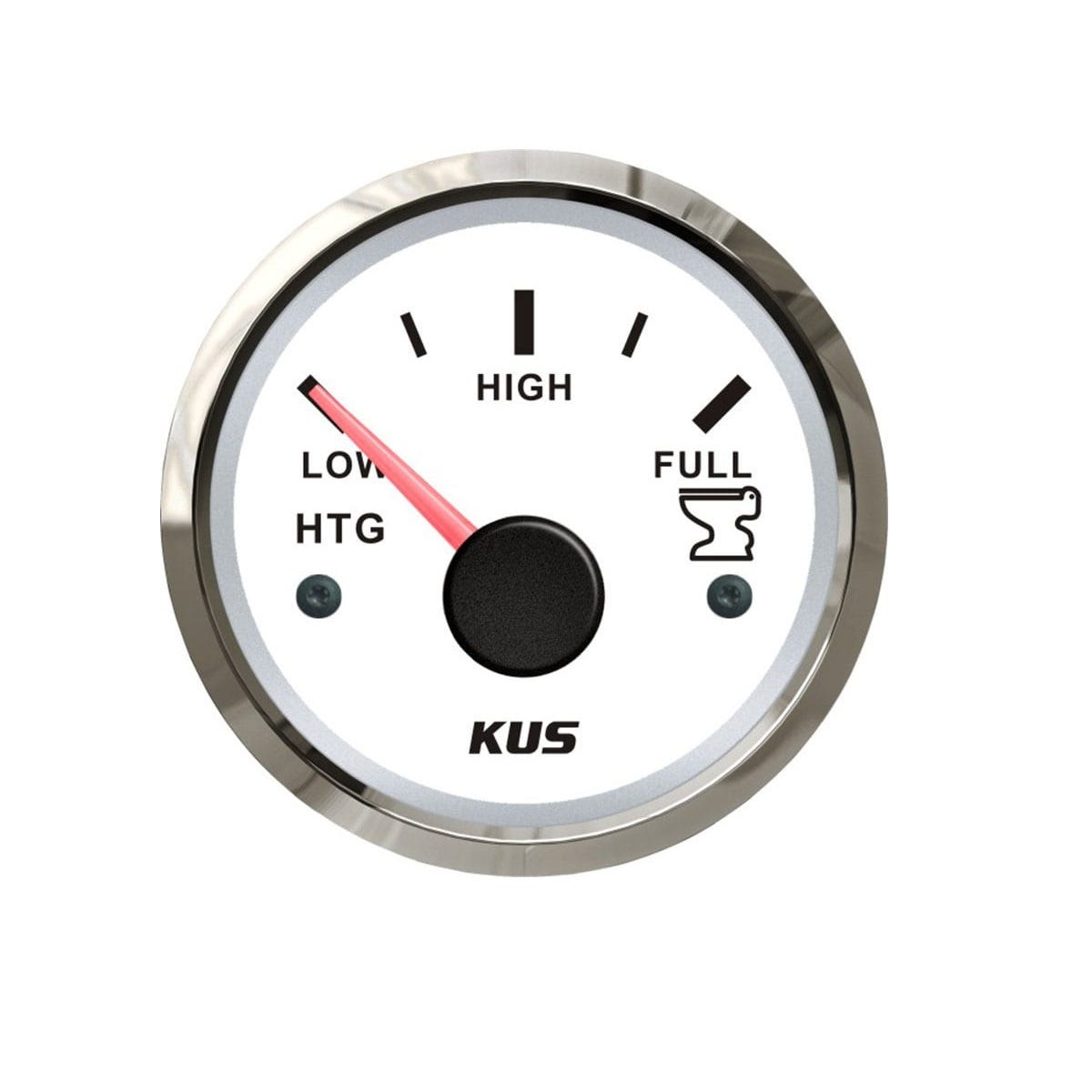

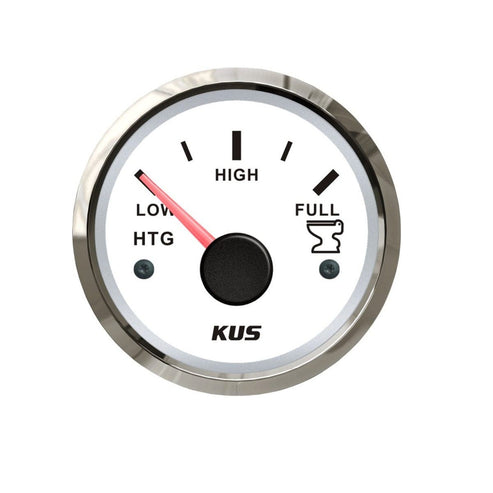

The KUS JMV00004 is the Sea V holding tank level gauge in white face with stainless steel bezel finish. Model CPGR-WS-240-33 mounts in a standard 2-inch gauge opening and reads tank level on a continuous Empty-to-Full sweep using standard 240–33Ω tank level senders. Rated IP67 for waterproof and dustproof protection. Suitable for helm stations, flybridge, and enclosed or exposed panel installations. Compatible with 12V and 24V DC systems.

Part Details:

• Part Number: JMV00004 (KUS)
• Model: CPGR-WS-240-33
• SKU: KUS-JMV00004
• Manufacturer: KUS / Sea V
• Type: Holding Tank Level Gauge
• Face Color: White
• Bezel: Stainless steel
• Mounting Dimension: 2 in. (51 mm)
• Indicating Range: Empty – Full (continuous sweep)
• Input Signal: 240–33Ω (standard marine sender range)
• Protection Rating: IP67 (waterproof, dustproof)
• Condition: New

Additional Information

Sea V Gauge Family — Color and Bezel Options:

The KUS Sea V CPGR holding tank gauge is available in multiple finish combinations. All variants share the same 2" mounting cutout, 240–33Ω sender range, and continuous Empty–Full sweep indication. The suffix identifies the finish:

• CPGR-WS-240-33 (JMV00004) — White face, stainless steel bezel — this product
• CPGR-BB-240-33 (JMV00039) — Black face, black plastic bezel — see the KUS Sea V Black Face / Black Bezel (JMV00039)

Select the variant that matches your panel finish. Both use the same 240–33Ω sender, 2" cutout, and Empty–Full continuous sweep.

240–33Ω Sender Compatibility:

The JMV00004 is calibrated for the standard marine 240–33Ω sender resistance range. Verify your holding tank sender resistance specification before purchasing. Common compatible sender brands include Wema, KUS, Faria, and Rochester. If your vessel uses a different sender resistance standard (e.g., 0–180Ω), this gauge will not read accurately without a sender replacement or signal converter.

Stainless Steel Bezel — Corrosion Resistance for Marine Environments:

The stainless steel bezel provides superior corrosion resistance compared to plastic bezels, making the JMV00004 the preferred finish for exposed helm stations, teak dash panels, and installations where a premium look is required. Pairs with the white face for a clean, classic gauge aesthetic common on offshore and cruising vessels.

IP67 Protection:

IP67 means the gauge is fully dust-tight and rated for temporary water immersion to 1 meter for up to 30 minutes — appropriate for exposed helm stations, open flybridge panels, and cockpit instrument locations subject to spray and wash-down.

2-Inch Mounting — Standard Panel Cutout:

The 2-inch mounting dimension is the standard marine gauge cutout size found on most helm panels. Confirm the available cutout size on your panel before ordering.

Installation Notes:

• Panel cutout: 2 in. (51 mm) diameter
• Sender wiring: verify sender resistance is 240–33Ω before connecting
• Grounding: use a clean, dedicated ground — poor grounds are the most common cause of erratic level gauge readings

Frequently Asked Questions

1. What is the difference between this gauge and the black face / black bezel variant?
Both the JMV00004 (white face, stainless bezel) and JMV00039 (black face, black plastic bezel) use a continuous Empty–Full sweep and the same 240–33Ω sender range and 2" mounting. The difference is finish only — choose based on your panel color scheme and bezel preference.

2. What sender resistance does this gauge require?
The JMV00004 requires a 240–33Ω sender. This is the standard resistance range for most marine tank level senders from KUS, Wema, Faria, and Rochester. Verify your holding tank sender's resistance specification before purchasing — a mismatched sender will produce inaccurate readings.

3. What size hole does this gauge require?
A standard 2-inch (51 mm) panel cutout. Confirm the available cutout size on your dash panel before ordering.

4. Is this gauge compatible with a 24V system?
Yes — the Sea V CPGR gauge operates on both 12V and 24V DC electrical systems.

5. Can this gauge be used for tanks other than holding tanks?
The gauge reads Empty–Full on any 240–33Ω sender input, so it can indicate level for any tank type — fuel, fresh water, gray water, or holding. The face graphics are generic (Empty–Full) without a tank-type-specific label. Confirm your sender resistance is 240–33Ω before use.
